3Z Max²

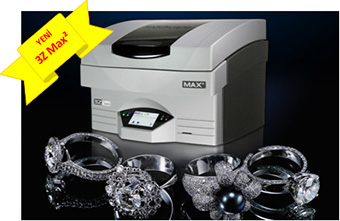

New SolidScape® 3Z MAX²

High Precision 3D printer for Manufacturing

The Solidscape® MAX2 is the high precision 3D printer for the manufacturing of wax patterns. MAX2 supports higher throughput and delivers very significant production gains for precision designs in jewelry, medical and industrial manufacturing applications.

Easy One-Touch Operation

The fully automated MAX² printer features a user-friendly touch screen and innovative software that allows operators of any skill level to produce their own high-precision wax patterns ready for casting.

Efficient Workflow

New MAX2 high performance capabilities greatly reduce the manufacturing workflow process time while delivering high casting yields and low cost-per-parts.

Superior Casting Results

Exclusive Solidscape 3Z®Model and 3Z®Support materials produce extremely smooth wax parts that accurately reproduce the most intricate of geometries while eliminating the need for manual post-production refining processes. Superior casting properties include fast meltout, no ash or residue, and no thermal expansion



Fully Automated

Plug and print

Automatic calibration and testing





Accessible

Icon-based user interface



Files, job start-up and job status can be managed and viewed remotely from PC

5000 X 5000 dots/inch (197 X 197 dots/mm) in X, Y



8000 dots/inch (315 dots/mm) in Z





Accuracy

± 0.0010 inch/inch (±25.4µ/25.4mm) along each axis X, Y and Z

User selectable through variable slider



0.001in ? 0.002in (25.4µm ? 50.8µm) in ¼ mil   (6.3µm) steps





Surface Finish

Layer thickness dependant, up to 32 micro-inches (RMS)





Desk-top Size

21.4" W X 18"D X 16" H  (558 X 495 X 419 mm)





Weight

75 lbs. weight (34 kg)

6" X 6" X 4" (152.4 X 152.4 X 101.6 mm) X, Y, Z Consistent Results over entire 6 inch x 6 inch (152.4mmx152.4mm) area





Power Requirements

90-250-v, 10A @ 230v max consumption





Ambient Operating Temp

Recommend 60° to 80° F (16° to 27° C)   at a 40% to 60% range of humidity





Equipment Interface

PC to printer connectivity



Wireless Wi-Fi 802.11 b/g, Ethernet  Hi-Speed USB 2.0





3Z®Model

Model material formulated for clean burnout to produce 100% casting results.





3Z®Support

Sacrificial support material is generated automatically for each job, and later dissolved away for a labor-saving, hands-free operation.





CAD file input

.stl and .slc files





3Z®Works

Software formats CAD files for 3D printing

Allows operator to visually place job suites within build envelope



Automatically generates support structure, saving on design time





3Z®Touch

System Software is Windows® based





Automatic

Status monitoring and fault detection



Re-start of build from point of interruption



Works unattended up to 72 hours





SCP®

Smooth Curvature Printing for superior surface finish



CE certified
FCC Class A approved

TUV approved (EN 60950 Compliant)
