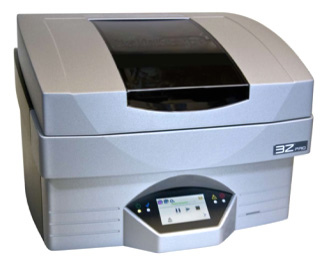

SolidScape 3Z Pro

3Z Pro Brochure

Industry-Leading Precision
Solidscape® Pro accuracy produces models of intricate designs, with ultra-fine feature detail and a smooth surface finish.

Efficient Workflow
Pro's new capabilities make the process workflow extremely efficient, delivering high casting yields, consistent turnarounds and low cost-per-model.

Easy One-Touch Operation
Intuitive one-touch operation via a universal LCD icon display eliminates language and technical barriers.

Superior Casting Results
The exclusive Solidscape® Model and Solidscape® Support materials produce wax parts with superior casting properties; fast meltout, no ash or residue, and no thermal expansion.



Fully Automated

Self installation

Automatic job set-up





Accessible

Icon-based user interface

Files, job start-up and job status can be managed and viewed remotely from PC





Resolution

5000 X 5000 dots/inch (197 X 197 dots/mm) in X, Y

8000 dpi (315 dots/mm) in Z





Accuracy

± 0.0010 inch/inch (±25.4µ/25.4mm) along each axis X, Y and Z





Layer Thickness

User selectable through variable slider

0.00025in ? 0.003in (6.3µm ? 76.2µm) in ¼ mil (6.3µm) steps





Surface Finish

Layer thickness dependant, up to 32 micro-inches (RMS)





Desk-top Size

21.4" W X 18"D X 16" H (558mm X 495 mm X 419 mm)





Weight

75 lbs. weight (34 kg)





Build Envelope

6" X 6" X 4" (152.4 X 152.4 X 101.6 mm)

  X, Y, Z Consistent results over entire 6 inch x 6 inch (152.4mmx152.4mm) area





Power Requirements

90-250-v, 10A @ 230v max consumption





Ambient Operating Temp

Recommend 60° to 80° F (16° to 27° C) at a 40% to 60% range of humidity





Equipment Interface

PC to printer connectivity

Wireless Wi-Fi 802.11 b/g, Ethernet





3Z?Model

Model material formulated for clean burnout to produce 100% castings





3Z?Support

Sacrificial material generated automatically for each job, and later dissolved away for a labor-saving, hands-free operation.





Dewax

Liquid solution used to dissolve sacrificial material





CAD file input

.stl and .slc files





3Z?Works

Software that formats CAD files for 3D printing

Allows operator to visually place job suites within build envelope



Automatically generates sacrificial support structure, saving design time

3Z?Touch

System Software is Windows® based





Automatic

Status monitoring and fault detection

Re-start of build from point of interruption

Works unattended up to 72 hours





SCP®

Smooth Curvature Printing for superior surface finish





CE certified; FCC Class A approved

 TUV approved (EN 60950 Compliant)
