The system for the production of parts made of technical ceramics

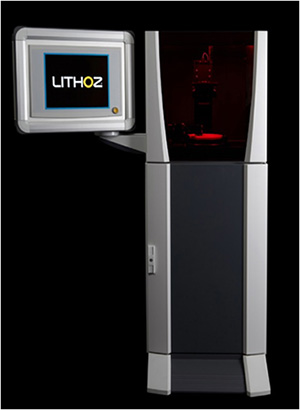

With the CeraFab 7500 Lithoz offers a complete system for the production of high-quality and fully functional high-performance ceramic parts (density up to 99.4% T.D.). The CeraFab 7500 allows for the production of prototypes, small scale series and highly-complex parts made of different ceramic materials and printed directly from CAD-files.

Userfriendly operation and simple maintenance

The CeraFab 7500 is a reliable and userfriendly Plug & play network printer that works independently from other devices. The simple handling of the machine offers an easygoing production of highly complex parts. The software that was designed by Lithoz starts by dismantling the CAD design into layers. The information is then transmitted to the machine which builds the parts layer by layer. The CeraFab 7500 is characterized by simple maintenance. A change of material can be completed within 15 minutes.

Technical properties of the CeraFab 7500

Lateral resolution	40 µm (635 dpi)
Building velocity	up to 100 slices per hour
Slice thickness	25 - 100 µm
Number of pixels (X, Y)	1920 x 1080
Building envelope (X, Y, Z)	76 mm x 43 mm x 150 mm
Data format	.stl (binary)
Light source	LED

The CeraFab 7500 is designed in a way that, depending on the design requirements, a layer thickness between 25µm and 100µm can be chosen. With the CeraFab 7500 it is possible to realize very fine layers of 25µm in very good quality. Additionally a good reproducibility of the layer thickness (± 1µm) is guaranteed. The system can build up to 100 layers per hour. With a layer thickness of 50 µm a building velocity of 5 mm/h can be achieved. Because of mask exposure the building velocity is independent from the cross section area that needs to be exposed and therefore regardless of the number of parts.
